Besides stainless steel woven wire mesh and wire cloth, we also provide stainless steel welded wire mesh.
Welded wire mesh is traditionally utilized as guards in buildings and factories, as animal enclosure and fence in agriculture; it is also used in horticulture industry as tree guards, plant protection as well as other uses.
Advantages of Stainless Steel Welded Wire Mesh:
Stainless Steel Welded Wire Mesh enjoys excellent corrosion resistance, beautiful look, longer work time, compared with galvanized welded iron wire mesh or PVC coated welded iron wire mesh, which can compensate for its seemingly higher cost.
We supply stainless steel welded wire mesh made with wire diameter from 0.3mm to 3mm, at roll width from 0.3m-2.3 m and length at customers request, mainly for export.
Stainless Steel Welded Mesh 001
Stainless Steel Welded Mesh 002
Stainless Steel Welded Mesh 003
Stainless Steel Welded Mesh 004
Specification List of Welded Wire Mesh |
Opening |
Wire Diameter<BWG> |
In inch |
In metric unit(mm) |
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note:
1. Standard roll length: 30m;width: 0.5m to 1.8m.
2. Special sizes available at request.

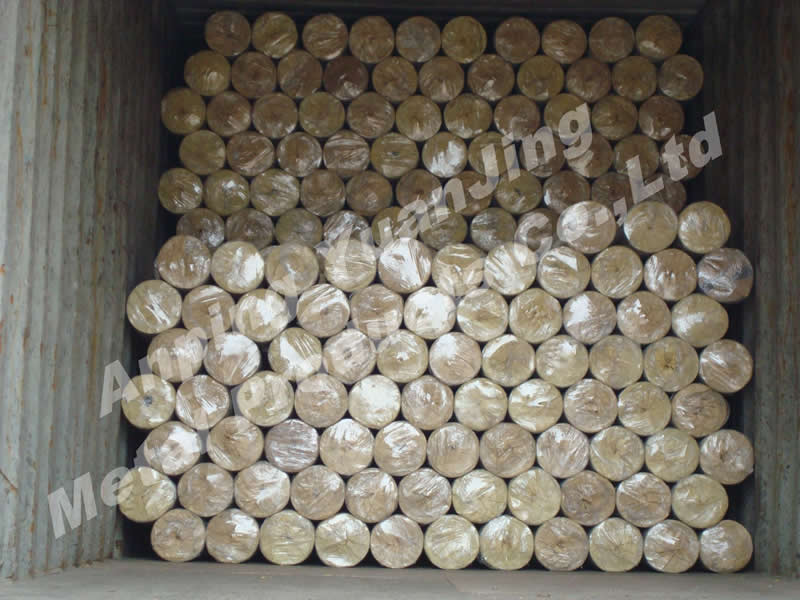

3. Packing: in waterproof paper in rolls. Custom packing available at request. |
|
